Perforated Plastics

Distinctive Features



Aplication



Material



Thicness of material



Plate size



Tramslucent milky white PP or PE

Click on image to enlarge.* The images are different in size from the real products.

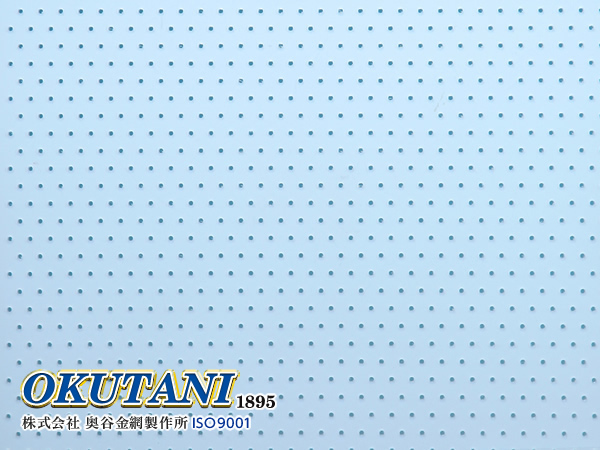

.078"dia.×.315"centers×.118"thick.  2.0Φ×8.0P×3.0t(mm), staggered.197"dia.×.315"centers×.118"thick.  5.0Φ×8.0P×3.0t(mm), staggered
.078″dia.×.315″centers×.118″thick.
2.0Φ×8.0P×3.0t(mm), staggered
.197″dia.×.315″centers×.118″thick.
5.0Φ×8.0P×3.0t(mm), staggered



Transparent, PET or PC

Click on image to enlarge.* The images are different in size from the real products.

.078"dia.×.315"centers×.118"thick. 2.0Φ×8.0P×3.0t (mm), staggered.197"dia.×.315"centers×.118"thick. 5.0Φ×8.0P×3.0t (mm), staggered
.078″dia.×.315″centers×.118″thick.
2.0Φ×8.0P×3.0t (mm), staggered
.197″dia.×.315″centers×.118″thick.
5.0Φ×8.0P×3.0t (mm), staggered



Square, diamond, slot, hexagonal, and apricot, Transparent, PVC

Click on image to enlarge.* The images are different in size from the real products.

.393"sq.×.512"centers×.078"thick. 10□×13P×2.0t (mm), straight.787"sq.×.905"centers×.118"thick. 20□×23P×3.0t (mm), straight
.393″sq.×.512″centers×.078″thick.
10□×13P×2.0t (mm), straight
.787″sq.×.905″centers×.118″thick.
20□×23P×3.0t (mm), straight

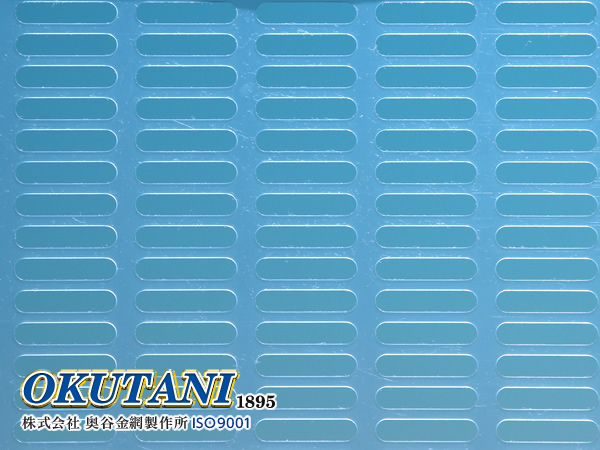

(.059"×.590")slot×(.197"×.315")centers×.118"thick. (1.5×1.5)long circle×(5×23)P×3.0t (mm), staggered(.315"×.1.50")slot×(.472"×1.77")centers×.118"thick. (8×38)long circle×(12×45)P×3.0t (mm), straight
(.059″×.590″)slot×(.197″×.315″)centers×.118″thick.
(1.5×1.5)×(5×23)P×3.0t (mm), staggered
(.315″×.1.50″)slot×(.472″×1.77″)centers×.118″thick.
(8×38)×(12×45)P×3.0t (mm), straight



.984"×.1.52"diamond×.118"thick. (25×3805)diamond×3bar×3.0t (mm).472"hexa.×.590"centers×.118"thick. 12hexagonal×15P×3.0t (mm)
.984″×.1.52″diamond×.118″thick.
(25×3805)diamond×3bar×3.0t (mm)
.472″hexa.×.590″centers×.118″thick.
12hexagonal×15P×3.0t (mm)



Apricot blossom on (3mm/.118") thick.Nibbling .118"Φ×1.96"centers×.118"thick. 3.0Φ×5.0P×3.0t(mm)
Apricot blossom on (3mm/.118″) thick.Nibbling .118″Φ×1.96″centers×.118″thick.
3.0Φ×5.0P×3.0t(mm)



Carbon Fiber Reinforced Thermo Plastic (CF/PA6 20/80 composite)

Click on image to enlarge.* The images are different in size from the real products.

.027"dia.×.078"centers×.023"thick. 0.7Φ×2.0P×0.6t (mm), staggeredLaser cutting .118"dia.×.023"thick. 3.0Φ×0.6t (mm), radial.118"sq.×.197"centers×.023"thick. 3□×5.0P×0.6t (mm), straight
.027″dia.×.078″centers×.023″thick.
0.7Φ×2.0P×0.6t (mm), staggered
Laser cutting .118″dia.×.023″thick.
3.0Φ×0.6t (mm), radial
.118″sq.×.197″centers×.023″thick.
3□×5.0P×0.6t (mm), straight
