Plastic perforated plates

Polyvinyl Color plastic(PVC)

Click the image to enlarge (not the actual size)
 Is some of the stock.

No.P2033
Color plastic Light blue (PVC) 1t×D2×P3 60°Staggered 40.2%
No.P1027
Color plastic Orange (PVC) 1t×D3×P5 60°Staggered 32.6%
No.P1039
Color plastic White 1t×D5×P8 60°Staggered 35.4%
Color plastic Light blue (PVC)
1t×D2×P3 60°Staggered
40.2%
Color plastic Orange (PVC)
1t×D3×P5 60°Staggered
32.6%
* The stock Black
Color plastic White
1t×D5×P8 60°Staggered
35.4%
No.P1022
Color plastic Ivory (PVC) 2t×D2×P4 60°Staggered 22.7%
No.P1027
Color plastic Yellow (PVC) 2t×D3×P5 60°Staggered 32.6%
Color plastic Ivory (PVC)
2t×D2×P4 60°Staggered
22.7% * processing size up to 910 × 910
Color plastic Yellow (PVC)
2t×D3×P5 60°Staggered
32.6%
No.P1039
Color plastic Sky blue (PVC) 2t×D5×P8 60°Staggered 35.4%
No.P1047
Color plastic Black (PVC) 2t×D8×P12 60°Staggered 40.3%
Color plastic Sky blue (PVC)
2t×D5×P8 60°Staggered
35.4%
Color plastic Black (PVC)
2t×D8×P12 60°Staggered
40.3%
No.P1027
カラー樹脂 グレー(PVC) 3t×D3×P5 60°チドリ 開孔率32.6%
No.P1039
カラー樹脂 Red(PVC) 3t×D5×P8 60°チドリ 開孔率35.4%
No.P1047
カラー樹脂 イエロー(PVC) 3t×D8×P12 60°チドリ 開孔率40.3%
Color plastic Gray (PVC)
3t×D3×P5 60°Staggered
32.6%
Color plastic Red (PVC)
3t×D5×P8 60°Staggered
35.4%
* The stock Gray
Color plastic Yellow (PVC)
3t×D8×P12 60°Staggered
40.3%
No.P1049
Color plastic Light green (PVC) 3t×D10×P15 60°Staggered 40.3%
No.P1050
Low fire PE Yellow 2.4t×D10×P20 60°Staggered 22.7%
No.P1132
Color plastic Gray 3t×□20×P23 Parallel 75.6%
Color plastic Light green (PVC)
3t×D10×P15 60°Staggered
40.3%
Low fire PE Yellow
2.4t×D10×P20 60°Staggered
22.7%
Color plastic Gray
3t×□20×P23 Parallel
75.6%
* The stock Gray

Dimensions are can be supported by ~ 910 × 1820. Other dimensions, color, please contact us.

Polyvinyl Color plastic(PVC) Stock list

Material Color Sheet thickness Catalog No. Pore size pitch Array
PVC Color plastic Black 1t P1027 3φ×5P 60°Staggered 32.7%
Gray 3t P1039 5φ×8P 60°Staggered 35.4%
Gray 3t P1132 20□×23P Parallel 75.6%
Size:910×1820

* The number of stock, please contact us.

Polypropylene (PP)

Click the image to enlarge (not the actual size)

写真を大きく表示
PP 3t×D5×P8 60°Staggered

Polyethylene (PE),

Click the image to enlarge (not the actual size)

写真を大きく表示 写真を大きく表示
PE 3t×D2×P8 60°Staggered PE 3t×D5×P8 60°Staggered

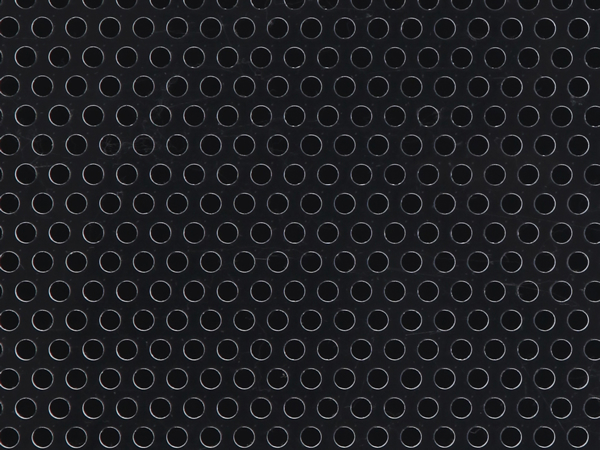

Polyethylene telephthalate (PET)

Click the image to enlarge (not the actual size).

写真を大きく表示 写真を大きく表示
PET 3t×D2×P8 60°Staggered PET 3t×D5×P8 60°Staggered

Polycarbonate (PC)

Click the image to enlarge (not the actual size).

写真を大きく表示 写真を大きく表示
PC 3t×D2×P8 60°Staggered PC 3t×D5×P8 60°Staggered

Polyvinyl chloride (PVC)

Click the image to enlarge (not the actual size).

写真を大きく表示 写真を大きく表示
PVC 3t×D2×P8 60°Staggered PVC 3t×D5×P8 60°Staggered
